Solar LED Light
Product Name

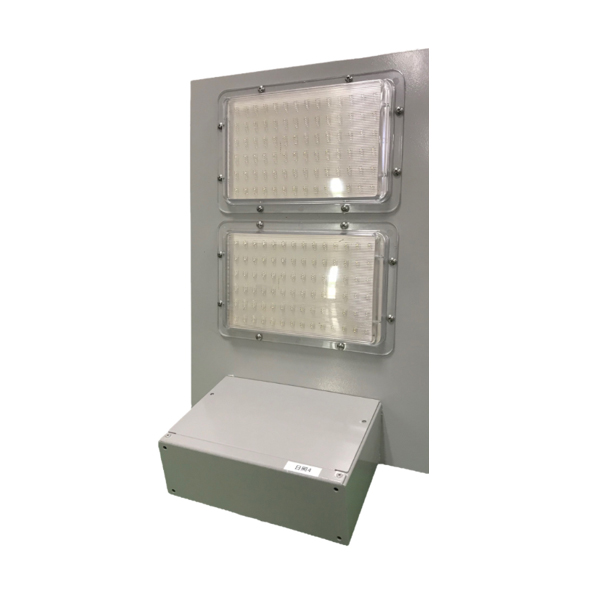

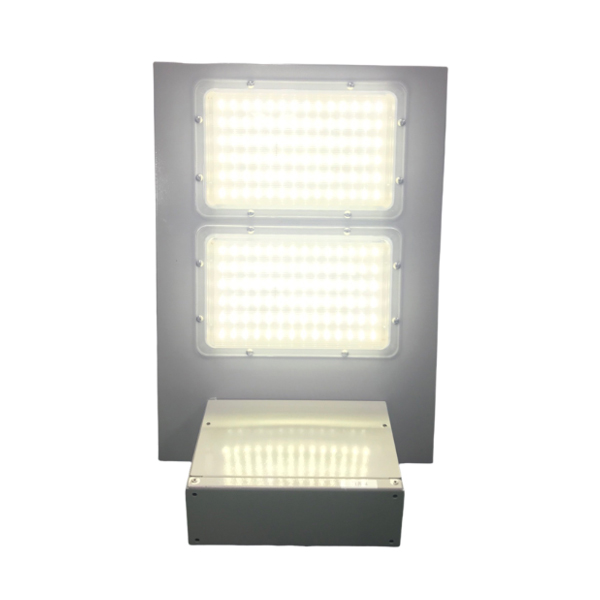

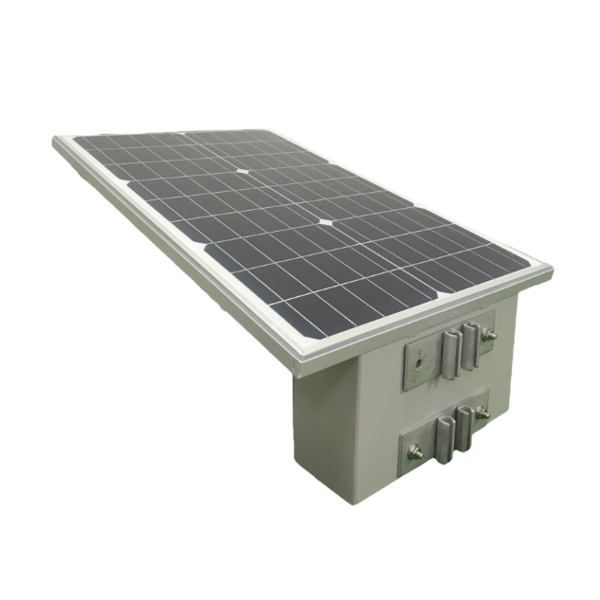

Solar LED Light (30W)
Model
H-212
Introduction
Features :
  • Ideal design for solar powered input and LED illuminating output
  • Suggested installation height is around 3.5~4 meters
  • Compact all in one DIY design easy to install
  • Maximize solar power efficiency
  • Wireless low cost low electricity loss
  • Green energy concept design
  • Super bright LED homogeneous lighting distribution
  • Long life duration, maintenance free
  • Strong housing, weather proof design
  • Vandal proof
Applications:
  1. Sidewalk
  2. Private garden
  3. Bus station

ITEM

Specification

Solar Panel

Type

Mono /Poly Crystalline Silicon

Wattage

30 W

Battery

      230WH Li-ion battery

LED

Numbers of LED

 168pcs

Color

White LED

Type

5 mm



Lumen

757 lm

Controller

Lighting Actuation

Automatically in the night

Operation time

At night

Lighting mode

  1. 100% brightness for first 6 hours and 50% brightness after 6 hours
  2. with the same brightness all night (please confirmed the lighting mode when order is confirmed)

Material

Aluminum alloy + powder coating

Certification

Standard

IEC 60598-1

EN 61000-6-3:2001+A1:2004

EN 61000-6-1:2001

EN 61000-4-2

EN 61000-4-3

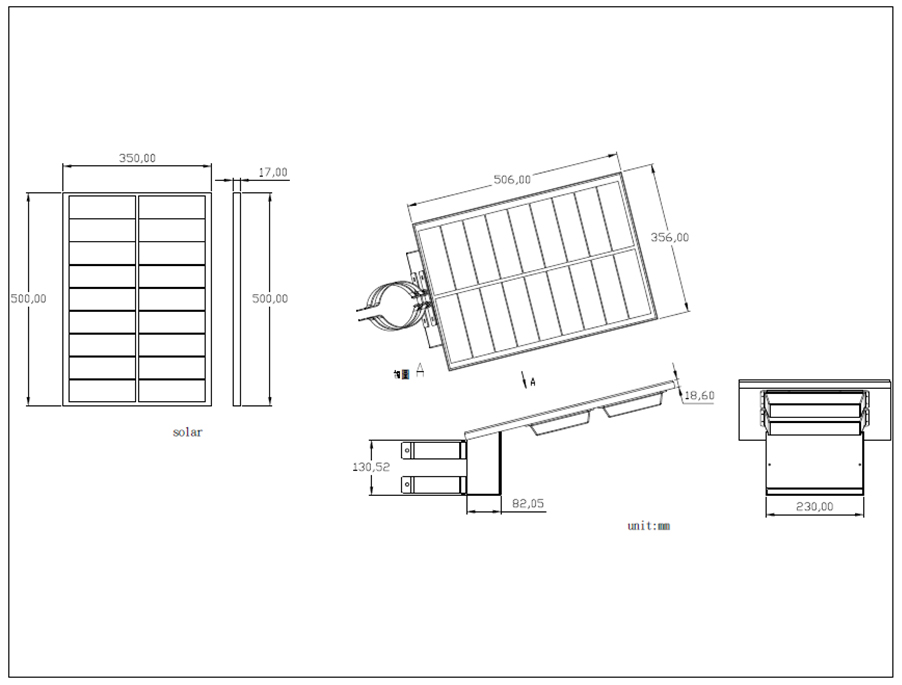

  Dimension

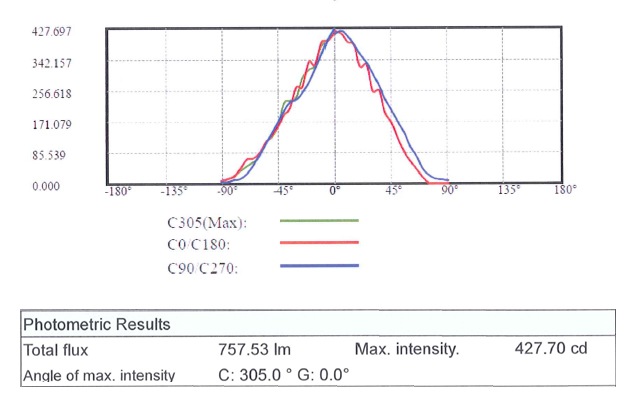

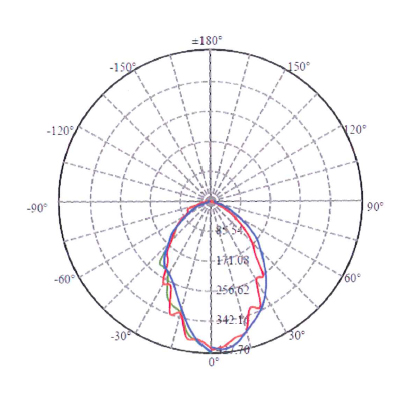

  Light distribution curve diagram
